Wholesale price ISUZU brand diesel 18m telescopic aerial working platform truck for sale

Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of aerial working platform truck in since 2004s. With many years’ experience in producing, we could supply 10m-28m overhead working trucks including ISUZU bucket truck, dongfeng aerial working platform truck, JMC high altitude operation truck, forland bucket truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13886878855.

the technical advantages of CLW Aerial platform trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
1 Aerial working height 12m,14m,16m,18m,20m,20m,14m
2 the rotation system will allow continuous 360-
degree rotation, with a safety system to prevent sudden drops in case of failure
3 Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the
basket
4 truck equipped with two rotating amber lights
5 Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead
working.

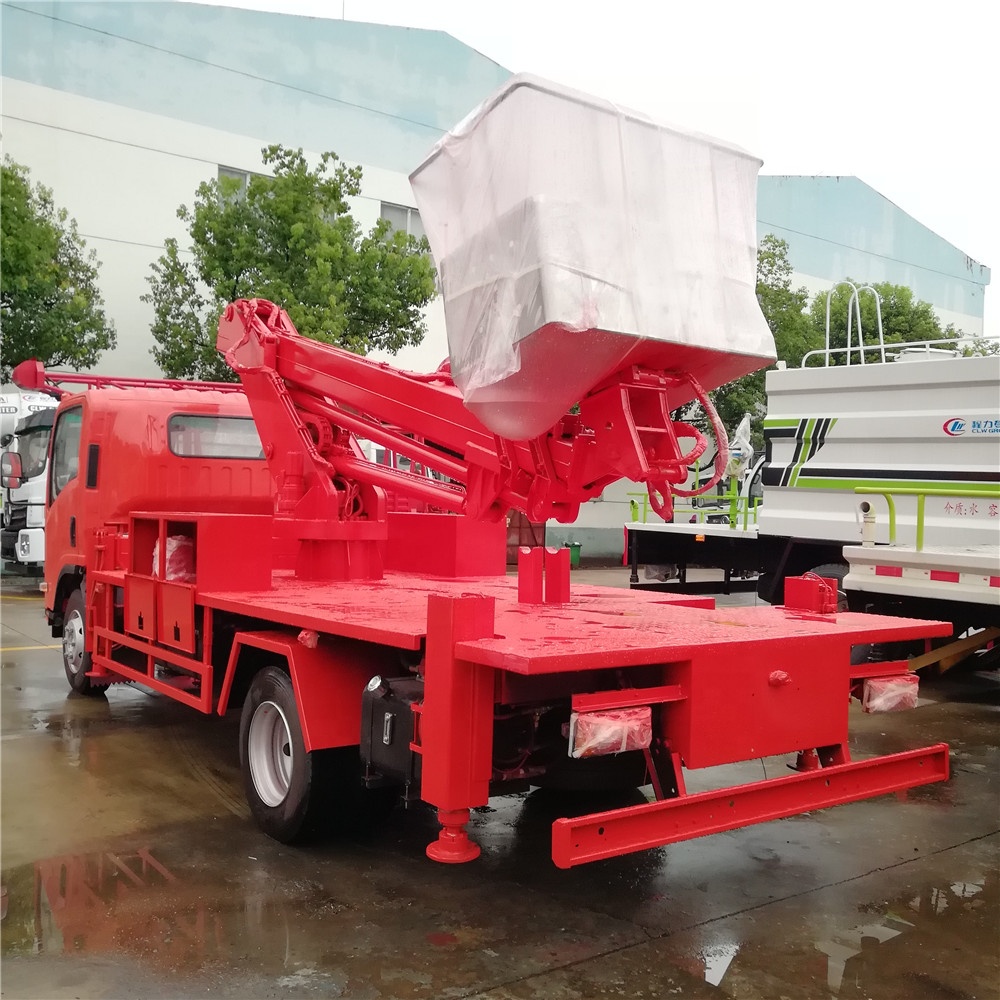

More pictures of ISUZU brand 18m diesel telescopic overhead working platform truck manufactured by Chengli Special Automobile Co., Ltd, as below.

Wholesale price ISUZU 18m telescopic high altitude operation truck for sale

High quality and besp rice ISUZU 18m telescopic overhead working plaform truck for sale

HOT SALE! Isuzu 18m telescopic aerial working platform truck for sale

Main technical parameters of ISUZU 4*2 LHD 18m telescopic aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd.

Main technical parameters
classification	Item		Unit	Parameters
Overall dimension	★Length		mm	5998
	★Width		mm	2000
	★Height		mm	2950
Mass	Seated person（driver cab included）		person	2
	★total mass		kg	4495
Main devices	Rated loading capacity of the working platform		kg	200
	Max working height		m	17.5
	Working range at the max working height		m	5.0
	Max working height		m	10.5
	Working height at the max working range		m	5
	Outrigger span ★	horizontal	mm	4000
		longitudinal	mm	4000
Driving parameters	★front suspension		mm	1075
	★rear suspension		mm	1563
	★wheelbase		mm	3360
	Max driving speed		Km/h	100
	Approach angle		°	20
	Departure angle		°	14

Part Name	Brief explanation
Truck chassis	QL10603HARY
Engine	Diesel engine, max rated power 98hp Euro 4
Driver cab	Single cab with air conditioner and 2 seats
Coaming and platform	Stainless steel coaming and non-slip walking platform
Force-taking system	Mechanical operation
Working platform	（1200）1200x700x1150
Boom type	3sections Pentagonal type working boom, synchronous telescoping
Rotating system	360°Continuous rotation
Outriggers	Front V type& rear H type; individually adjustable
Operatgion	★ working platform & Electrical operation of ground remote control
Control system	Electro-hydraulic proportional control system， Electro-hydraulic proportional control system
Leveling system	Automatic hydraulic leveling


Basic Functions and security configuration

Basic Functions and security configuration: the rated loading capacity of the working platform is 200kgs; max working height is 17.5m; max working range is 10.5m.
Name	Brief explanation
Automatic interlock device for loading and unloading vehicles	★It is used for interlock on and off vehicles to prevent disoperation and danger
hanging flower basket	High Strength Aluminum Alloy 360° rotating
Level detection function	★Real-time detection of the vehicle level
Emergency Electric Emergency pump	When the engine and main pump failure, the staff can be sent back to the ground
Emergency Stop Device	For Emergency Stop Operations
Night safety warning device	In the vehicle there are engineering strobe lights, lighting lights
Horizontal State Tester for whole vehicle	The utility model can detect the lateral and longitudinal inclining state of the whole vehicle
Engine ignition off	In the turntable and platform for the engine ignition, flameout control
Real-time communication	There's a walkie-talkie on the deck and off the train
